Description
We recommend that any installation is carried out and tested by a LPG Gas Safe Engineer

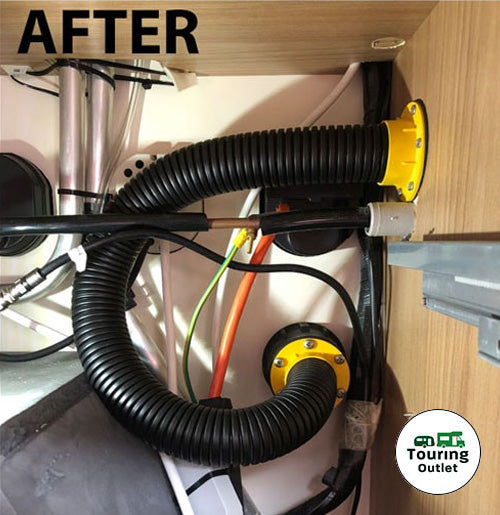

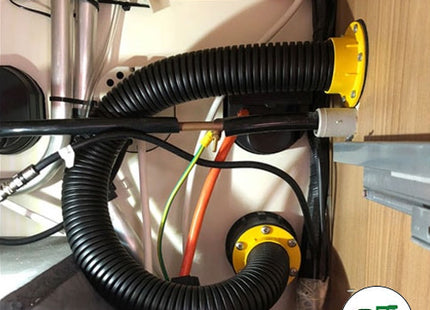

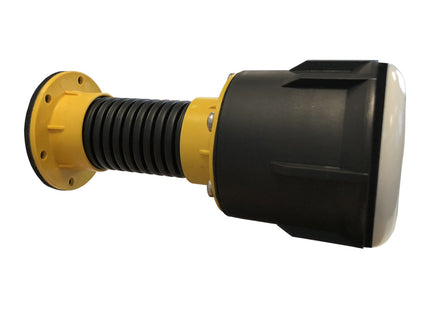

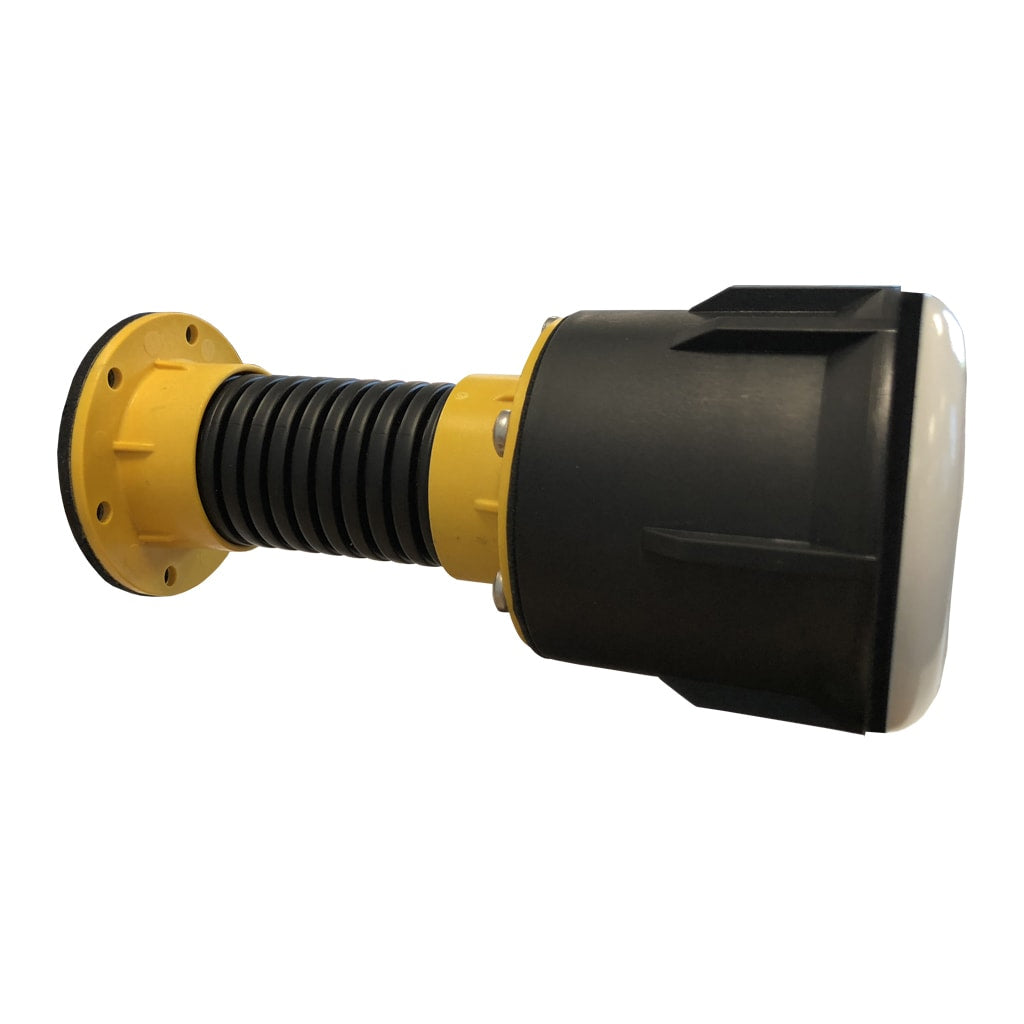

The Gaslow LPG Filler Vent Pipe 2 Metre & Fittings Kit is designed for installations where an LPG refill hose needs to pass through a void or cavity within a vehicle. The kit provides a dedicated ventilation route to the outside atmosphere, helping to safely direct any LPG that may leak from the filler connections away from enclosed vehicle spaces.

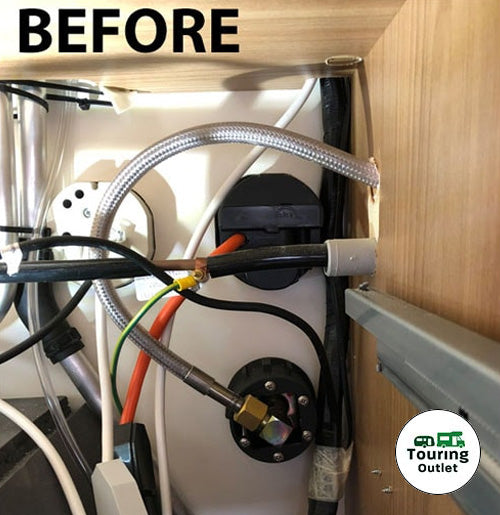

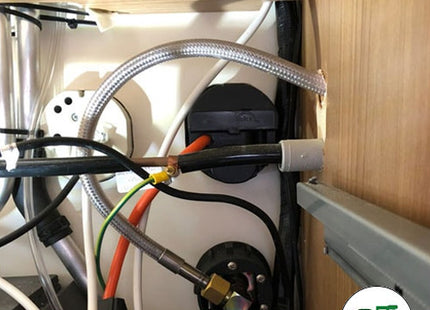

Ideal for a wide range of vehicle conversions and specialist applications, this kit can be used in campervans, motorhomes, catering vehicles and farrier vehicles where the filler hose passes through an enclosed area. It is particularly useful for installations where the filler point is separated from the gas tank by a vehicle cavity or where the filler connection enters the habitation area before passing through the floor to an underslung LPG tank.

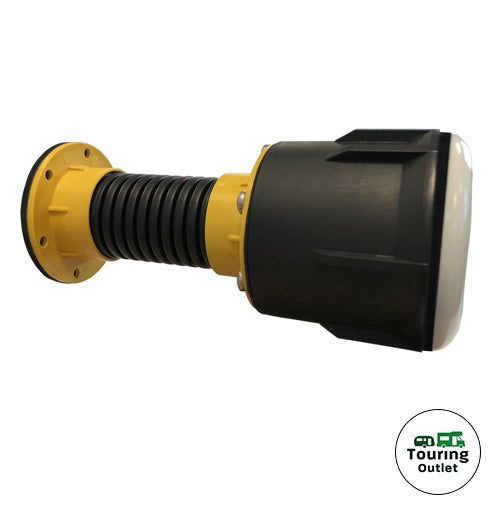

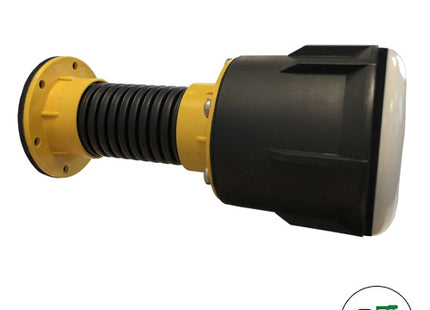

The kit is suitable for installations using a 1500mm or 2000mm LPG filler hose. The filler-end vent fitting is designed to be secured using the existing filler pod mounting screws, while the opposite end can be fixed using suitable self-tapping screws or bolts, depending on the installation.

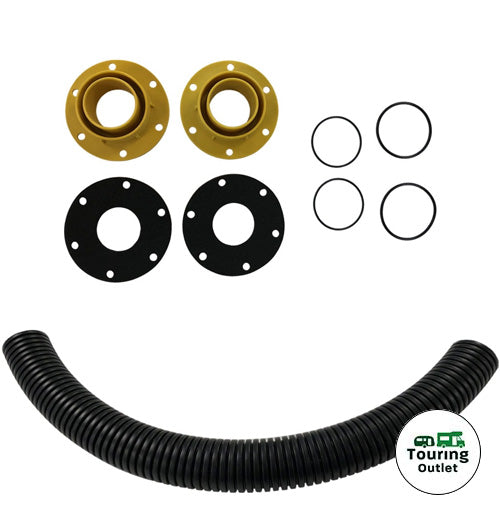

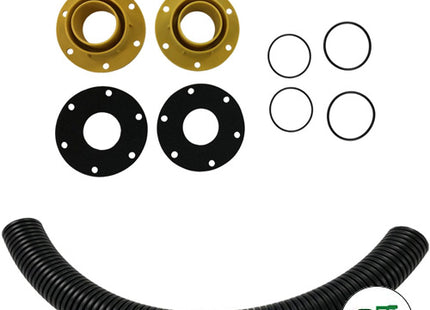

The Gaslow LPG Filler Vent Pipe Kit includes:
- 2x metre of convoluted pipe
- 2x end plates
- 2x 3mm neoprene gaskets
- 2x O ring 35 x 1.5
- 2x O ring 39 x 2
Designed to support safer LPG filler hose installations, this kit helps provide a suitable ventilation route where the filler hose passes through a vehicle void. Installation must follow the manufacturer's instructions and applicable LPG safety requirements.
